Resources Reference

What is a Resource?

A Resource is a delivery vehicle.

Resource Entity Reference

Name	Format	Description	Required	Example
id	GUID	Unique resource reference that is generated by the system	N/A	fe9cdda3-7288-48b4-a6aa-8e02c883526b
algorithm_fields	Object	algorithm_fields of Resources is empty but still required.	True	{}
created	Date-time	The Date-time in which the Resource was created	N/A	2017-11-13T14:30:00Z
modified	Date-time	The Date-time in which the Resource was modified last time	N/A	2017-11-13T14:30:00Z
external_data	Object	The external data introduced when the Resource was created	False	{"customer_name": "Plotwise"}
current_state	String	The name of the current Resource state	N/A	planned
old_state	String	The name of the previous Resource state	N/A	new
state_reason	String	The cause of the current state, useful to troubleshoot when the entity reaches an error state	N/A	initialized/resource/391a3fe7-6dc8-4c4f-9d2a-1cb84ac55e31/errors
bucket	GUID	The Bucket Guid where the Resource belongs to	N/A	b96f55c4-c10c-4f58-8ec6-d77c2b3b94f1
driver_capacity	Float	New in v2 The maximum amount a driver is legally allowed to handle in a given shift including both the amount delivered and picked up. If not set, it is assumed that such limit is not applicable. Either driver_capacity or driver_capacity_vector has to be provided. Both of them are considered optional. resource creation.	False	1000.0
vehicle_capacity	Float	New in v2 The maximum amount of physical capacity in the vehicle. Vehicles with a higher capacity are assigned to routes that start earlier. Either vehicle_capacity or vehicle_capacity_vector has to be provided. Both of them can not be removed from the request fields simultaneously. resource creation.	False	900.0
vehicle_capacity_vector	Capacity	Same as vehicle_capacity but allows multiple values, mutually exclusive with vehicle_capacity field. Setting Null to a capacity of a resource means it is unlimited.	False	{"capacity_1":12.3, "capacity_2": null, "capacity_3": null, "capacity_4": null, "capacity_5": null }
driver_capacity_vector	Capacity	Same as driver_capacity but allows multiple values, mutually exclusive with driver_capacity field. Setting Null to a capacity of a resource means it is unlimited.	False	{"capacity_1":12.3, "capacity_2": null, "capacity_3": null, "capacity_4": null, "capacity_5": null }
resource_route_tag	String	Tag used to pair resources with matching routes. A tag cannot be longer than 32 characters and can only contains letters, numbers, underscores, and hyphens.	False	"early_shift"
initial_cost	Float	The initial cost of planning this resource will impact planning quality	False	10.0
time_cost	Float	Additional cost per second of shift resulting from planning this resource will impact planning quality	False	0.0012
dist_cost	Float	Additional cost per meter travelled resulting from planning this resource will impact planning quality	False	0.03
maximum_route_distance_meters	Integer	The maximum distance (in meters) a route using this resource can be	False	250000
resource_event_tags	Array of Strings	The tags used to pair up events with this resource. The Event.resource_event_tags must be a subset of this attribute to be considered as a match. You can specify up to five tags.	False	["tag1", "tag2"]

Available actions

Cancel

Action in which a certain resource is cancelled.

The associated route will get a new resource assigned to it, as long as that resource can fit all of the events that are on the route. If no resource can be found, the route will be emptied (but kept in the route pool), and the events will be re-planned on other routes as much as possible. Events that could not be re-planned will become unplannable events - they will go into the cancelled state with a state reason that matches the cancelled resource uuid.

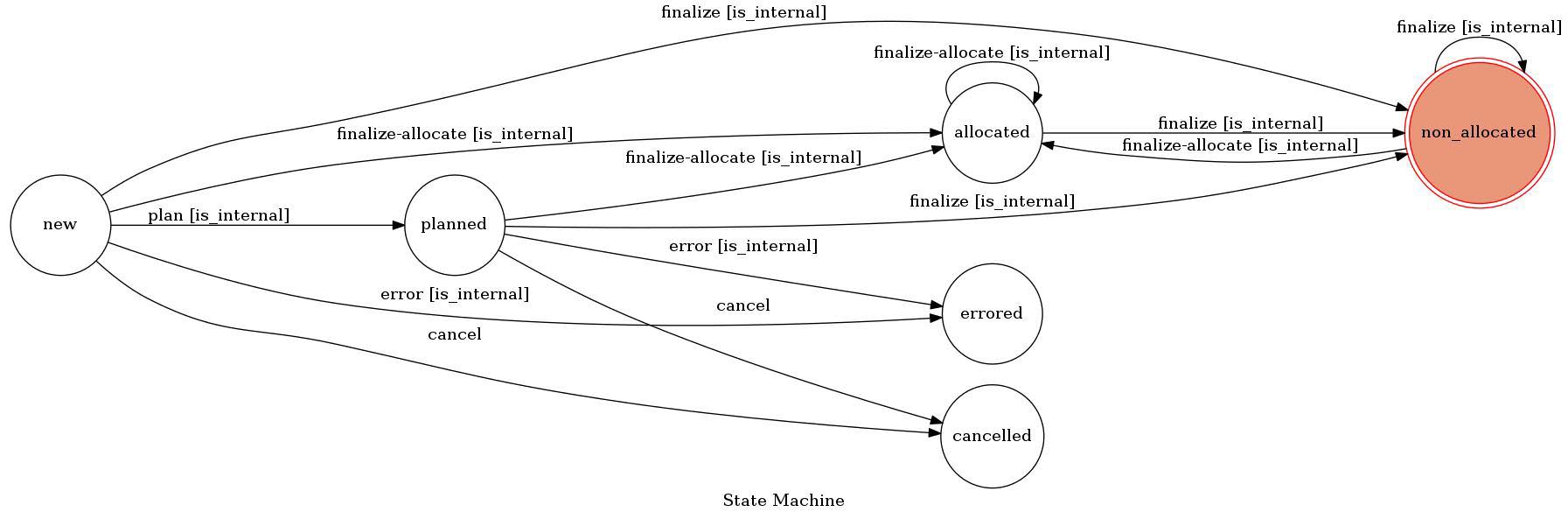

States

New

Original state in which the resource is created.

Planned

State in which the resource is planned for a certain route.

Allocated

State in which the resource gets when the bucket in which it belongs to is finalized and the Resource is used.

Errored

State in which the resource is going to be if there is an error with it. See more about potential errors here.

Cancelled

State the resource gets when it is cancelled. This state is reached if the resource is directly cancelled by the user, or it is reassigned/replanned.

Non-Allocated

State in which the resource gets if the bucket in which belongs to is finalized and it is not being used.

Gotchas

• Make sure you send in all the available resources! This will help to plan as many events as possible, while the algorithm will be constantly trying to reduce number of resources that are actually used in the plan
• If you reduce the number of resources, events that have been planned before may not fit anymore.
• All capacity is self-defined by the API consumer. It can be a number of packages, weight, volume, etc. It is always a Float.
• Make sure that the definition of capacity is the same for resources and events.

Examples

Find the examples here.
